Model No.: GVRP 150LB-36″*33″ Clicks: 465

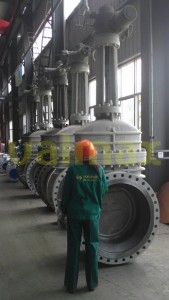

Reduced Port Gate Valve, RF flange end, OS&Y, bolted bonnet, rising stem, electrical actuator.
Model: 36″*30″, 150 LB.
Body/Bonnet: ASTM A216 WCB.
Wedge: ASTM A216 WCB+13CR.
Seat: ASTM A105+13CR.
Stem: 13CR.
Face to face dimension: 711 mm.
Valve standard: API 600.
RF standard: ASME B16.47.
Sealing pressure test: 22 BAR.
Shell pressure test: 30 BAR.

Reduced Port Gate Valve, ASME B16.34, GB 12234, API 600 Key Specifications / Features
Standards and Range:
– Design basis: ASME B16.34, GB 12234, API 600.
– Flanged ends: ASME B16.5, GB 9113.
– Butt-welding ends: ASME B16.25.
– Face-to-face dimension: ASME B16.10, GB 12221.
– Inspection and test: API 598, API 6D, JB/T 9092.
– Pressure rating: Class 150 – 2500, PN16 – PN420.
– Product range: 2″ – 48″, DN50 – DN1200.
– Materials of main parts: WCB, LCB, WC6, WC9, C5, C12.

Design Features:
– Certified to API 600.
– USA VOC middle shaft micro leakage certification.
– Design of outside screw and yoke (OS&Y).
– Bolted bonnet.
– Pressure self-sealing type bonnet.
– Design of wedge type flexible gate and full guide rail.
– Operation methods: handwheel, bevel gear or electric actuated.
– Overlay welding by hard alloy can be performed on the seat surface according to specifications in API 600.
– Replaceable valve seat and back seat.
– Integral seat and back seat are adopted in stainless steel valves.
