Valmax is a professional manufacturer of industrial valves located in Lishui as a famous hometown of valves in China. Valmax owns valve foundry and processing factories, Valmax valve products including ball valves, gate valves, globe valves, check valves and strainers with API, DIN, GOST standard. From China Valves Manufacturer, post China Made Ball Valves, Gate Valves, Check Valves, Globe Valves

Model No.: GVEA 150LB-16 Clicks: 408 Electric Actuated Cast Gate Valves, RF flange end, OS&Y, bolted bonnet, rising stem, bypass type, electrical actuator. Model: 16″, 150 LB. Body/Bonnet: ASTM A216 WCB. Wedge: ASTM A216 WCB+13CR. Seat: ASTM A105+13CR. Stem: 13CR. Face to face dimension: 406 mm. Valve standard: API 600. RF standard: ASME B16.5. Sealing pressure test: 22 BAR. Shell pressure test: 30 BAR. API 600 Electric Actuated Cast Gate Valves, OS&Y, 150LB Key Specifications / Features Standards and Range: – Design basis: ASME B16.34, GB 12234, API 600. – Flanged ends: ASME B16.5, GB 9113. – Butt-welding ends: ASME

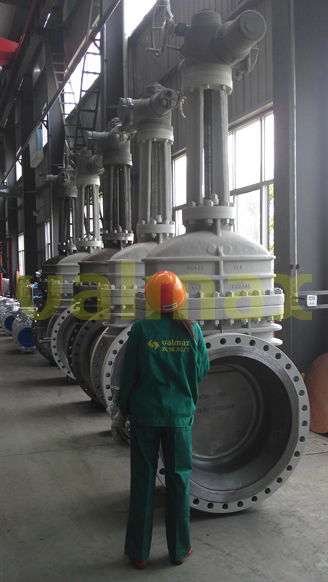

Model No.: GVRP 150LB-36″*33″ Clicks: 465 Reduced Port Gate Valve, RF flange end, OS&Y, bolted bonnet, rising stem, electrical actuator. Model: 36″*30″, 150 LB. Body/Bonnet: ASTM A216 WCB. Wedge: ASTM A216 WCB+13CR. Seat: ASTM A105+13CR. Stem: 13CR. Face to face dimension: 711 mm. Valve standard: API 600. RF standard: ASME B16.47. Sealing pressure test: 22 BAR. Shell pressure test: 30 BAR. Reduced Port Gate Valve, ASME B16.34, GB 12234, API 600 Key Specifications / Features Standards and Range: – Design basis: ASME B16.34, GB 12234, API 600. – Flanged ends: ASME B16.5, GB 9113. – Butt-welding ends: ASME B16.25. –

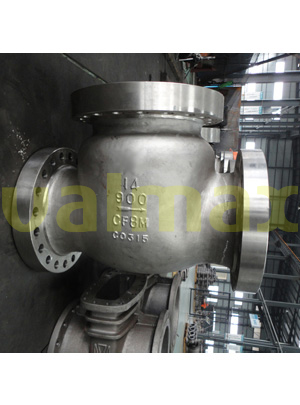

Model No.: CVCF8M 900LB-14 Clicks: 439 ASTM A351 CF8M check valves, RF flange end body. Model: 14 Inch, 900 LB. Material: ASTM A351 CF8M. Valve standard: BS 1868. Face to face dimension: 1029 mm. Maching tolerance control: GB/T 1804. ASTM A351 CF8M Check Valves, BS 1868, RF flange, 900 LB Key Specifications / Features Standards and range: – Design basis: ASME B16.34, GB 12236, API 6D. – Flanged ends: ASME B16.5, GB 9113. – Butt-welding ends: ASME B16.25. – Face-to-face dimension: ASME B16.10, GB 12221. – Inspection and test: API 598, API 6D, JB/T 9092. – Pressure rating: Class150 –

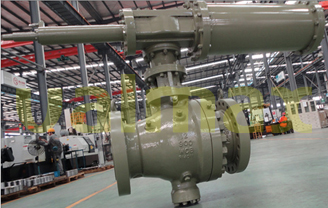

Model No.: BVST 900LB -12 Clicks: 531 Ball valve 12″ 900LB RF, side entry, trunnion mounted, 2pcs type, pneumatic actuator op. Standards: Body/Bonnet: ASTM A216 WCB. Ball: ASTM A182 F316. Seat: NYLON. Stem: ASTM A182 F316. Face to face dimension: 965mm. Valve standard: API6D. Flange standard: ASME B16.5. Sealing pressure test: 165BAR. Shell pressure test: 225BAR. China Pneumatic Actuated Ball Valves, Side Entry, 900LB Key Specifications / Features Key Feature and Ranges: – Design basis and product range: API6D / API608 / GB/T12237. – Face-to-face dimension: ASME B16.10 / GB / T12221. – Flanged ends: API605/ASME B16.47 / GB /

Valmax Valve Co., Ltd. was founded in 2004, changed to the new brand “Valmax” in 2012 as a newly developed valve manufacturer in China. We are concentrate on industrial valves R & D and production and trust you will enjoy to be partner of us to win-win on valve business with the support of “trustable quality, better delivery and competitive price”! Valmax Valve is a professional manufacturer of industrial valves located in Lishui, Zhejiang, as a famous hometown of valves in China. We owns foundry and processing factories, Valve products include ball valves, check valves, gate valves, globe valves and

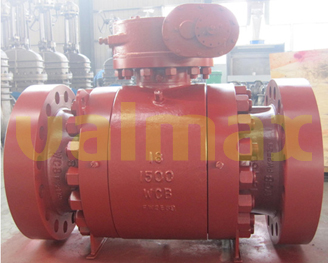

Model No.: BVST1500LB-18 Clicks: 676 Ball valve 18″ 1500LB RF, side entry, trunnion mounted, 3pcs type, gear op. Body/Bonnet: ASTM A216 WCB + ENP Ball: ASTM A182 F304 Seat: PEEK Stem: ASTM A182 F304 Face to face dimension: 1537mm Valve standard: API6D Flange standard: ASME B16.5 Sealing pressure test: 281BAR Shell pressure test: 383BAR Others: NACE MR-01-75 Side Entry Trunnion Mounted Ball Valves 1500LB RF Key Specifications / Features – Design basis and product range: API6D/API608/GB/T12237. – Face-to-face dimension: ASME B16.10/GB/T12221. – Flanged ends: API605/ASME B16.47/GB/T9113. – Butt-welding ends: ASME B16.25/GB/T12224. – Wall thickness: ASME B16.34. – Fireproof test: API607.
